Coastal Nomad

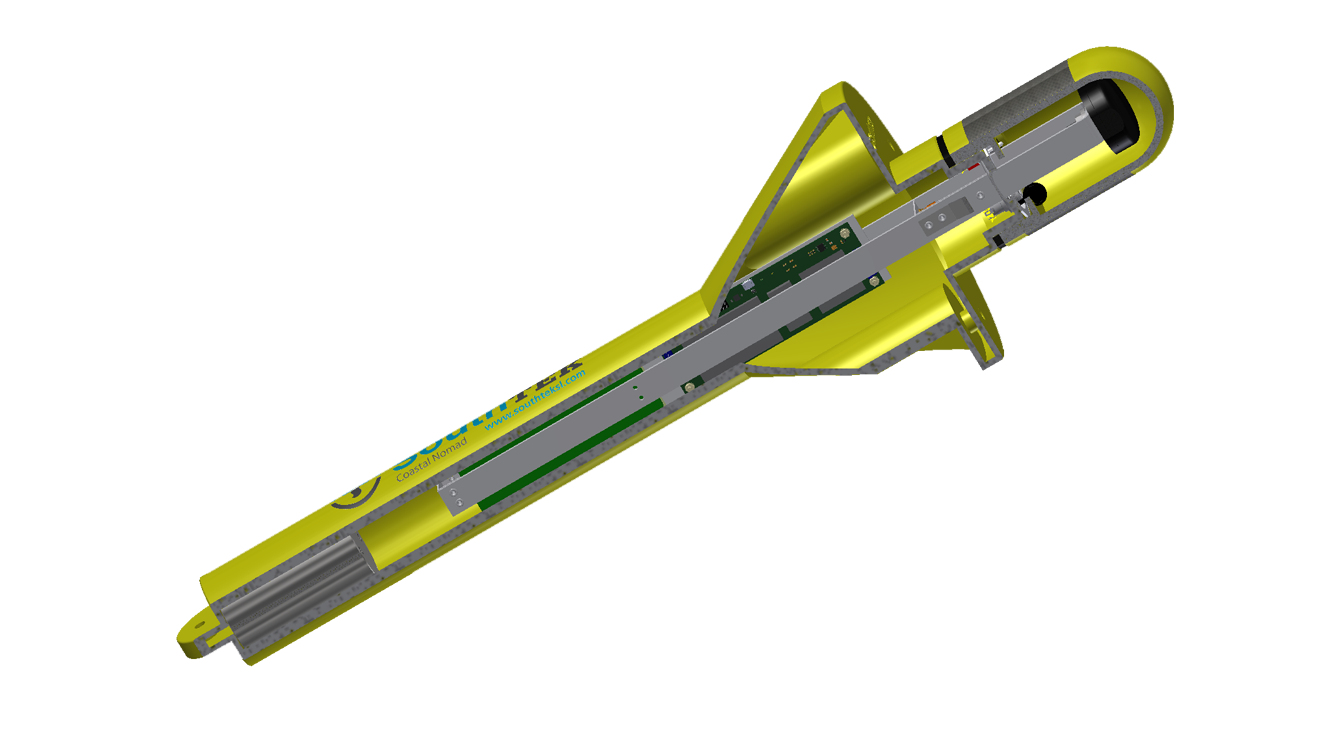

A drifter designed for short-term experiments in coastal waters under GSM coverage.
Two to seven days of autonomy depending on GSM coverage and sampling-communication configurations.
Rechargable LiPo batteries to reuse as many times as necessary.
Two to seven days of autonomy depending on GSM coverage and sampling-communication configurations.
Rechargable LiPo batteries to reuse as many times as necessary.
Downloads
- Coastal Nomad v3 - Qick Start Guide - A3
- Coastal Nomad v2 - Qick Start Guide - A4
- Application Note 201 - LD Manager Signal Identification Guide - A4
- Application Note 202 - LED Indications for Nomad Family v3 - A4
- Application Note 312 - Drogue Pila assembly - A4
- Application Note 313 - Drogue Satis assembly - A4
- Offshore Nomad v3 - Qick Start Guide - A3
- Offshore Nomad v2 - Qick Start Guide - A4
- Hybrid Nomad v3 - Qick Start Guide - A3
Specifications
- GSM: Quad-Band GSM 850/900/1800/1900 MHz
- GPRS: Multi-slot class 12
- GNSS: Receiver 32 channels
- GPS+GALILEO+SBAS: L1 1575.42MHz
- GLONASS: L1 1597.5MHz
- Processor: ARM Core
- Memory: 5MB (RAM) and 10MB (Flash)
- Battery: Lithium polymer (LiPo), 5100mAh (Standard), 3.7V Nominal
- Anntenas: GSM 2dBi, GPS 2.5dBi
- Charging conditions: DC 4.2V 2A max
- Dimensions: 720x220x220 mm
- Weight: 2895g
